SPECIFICATIONS

Application: Electric Toy

Brand Name: NONE

Choice: yes

Circular dot matrix: red display

Condition: New

High-concerned chemical: None

Kit Name: Classic Upgraded Pixel Game Console Kit

Maximum operating current: approximately 5V

Operating Temperature: -20℃ ~ +60℃

Origin: Mainland China

Package: SOP

Power supply method: Four 1.5V AAA batteries or USB DC5V

Quantity: 1

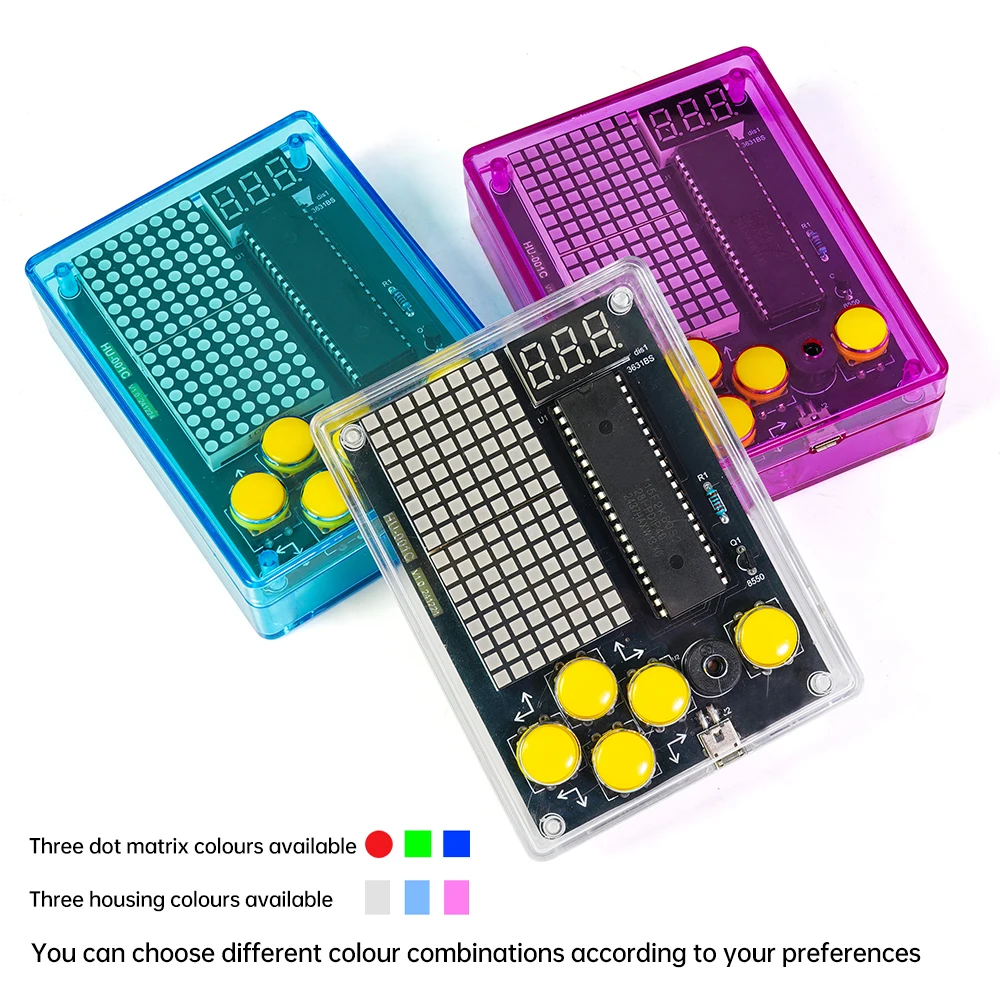

Shell styles: transparent shell, blue shell, purple shell

Sleep current: 5V less than 1uA

Square Dot Matrix: Available in Green and Blue

Suitable for: Electronics enthusiasts learning welding skills and basic circuit knowledge

Supply Voltage: 5V

Type: Module

is_customized: Yes

Product Features:

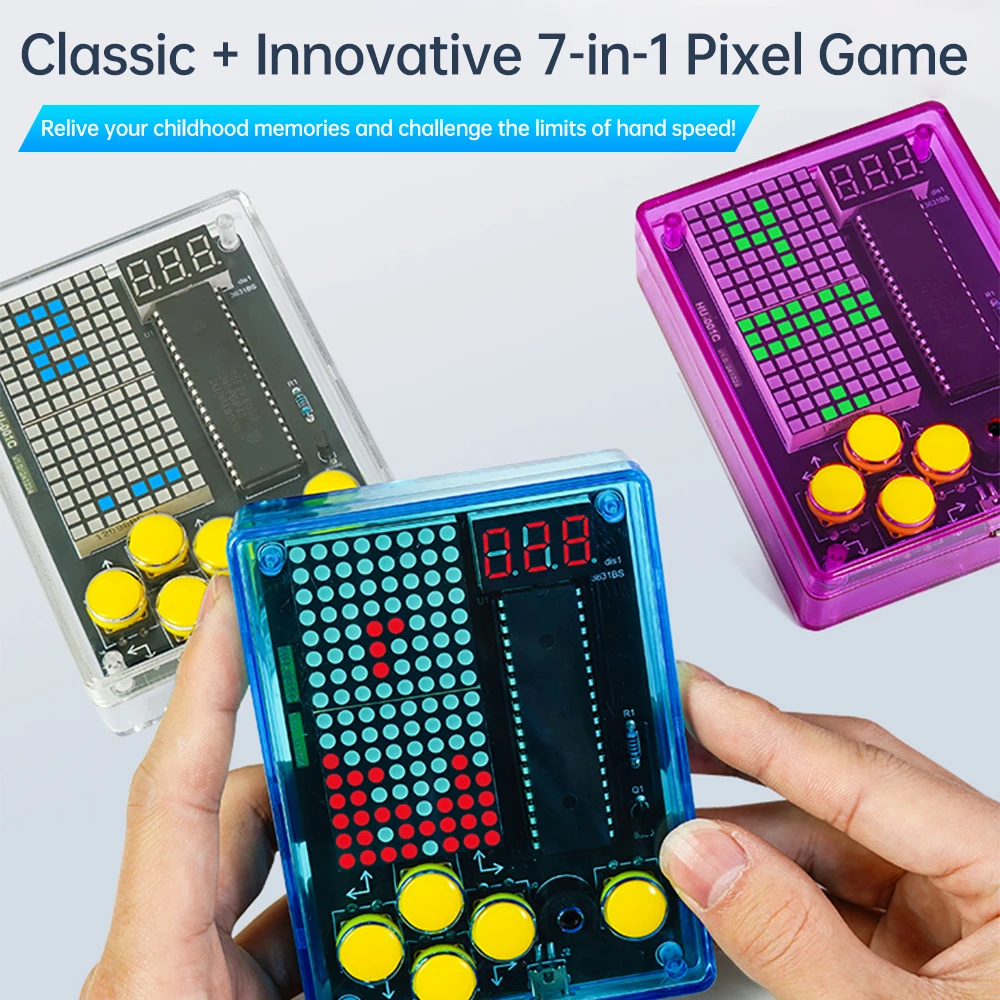

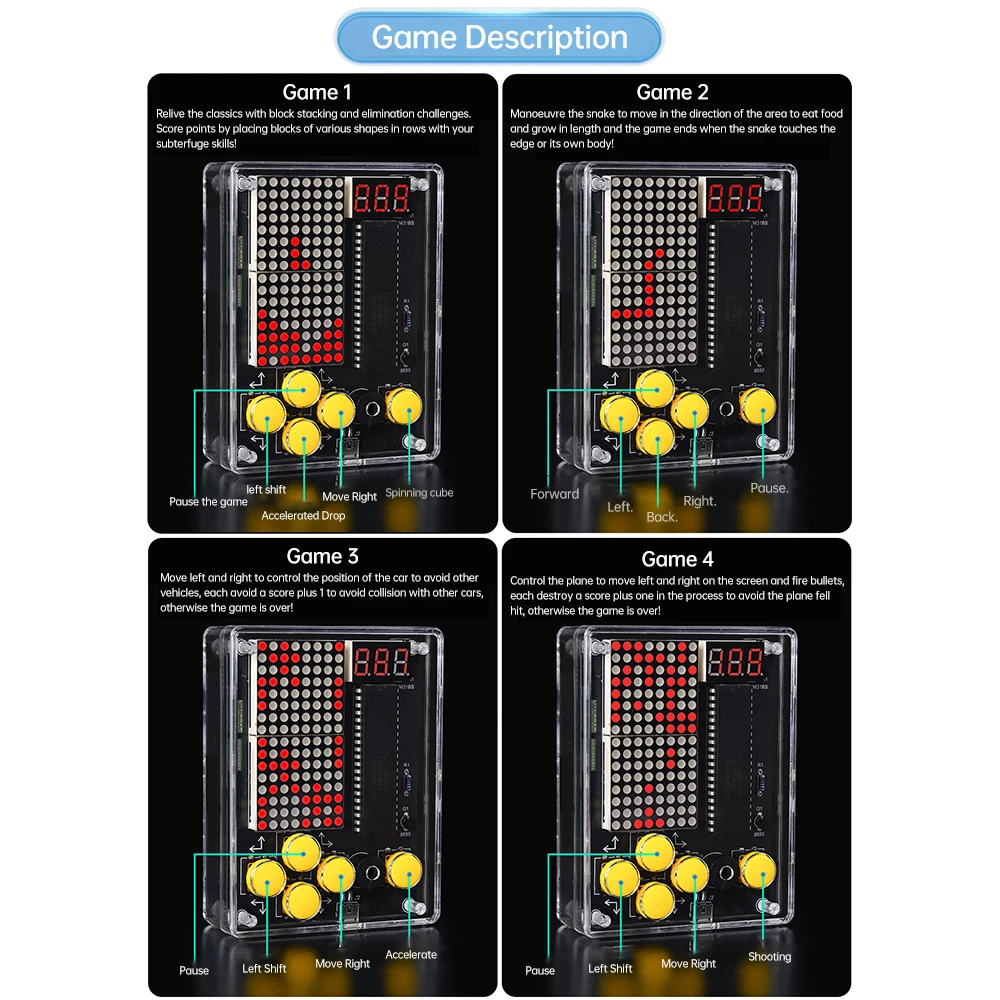

1. Classic and Innovation Combination: Includes 7 pixel games, revisiting childhood classics and adding creative gameplay.

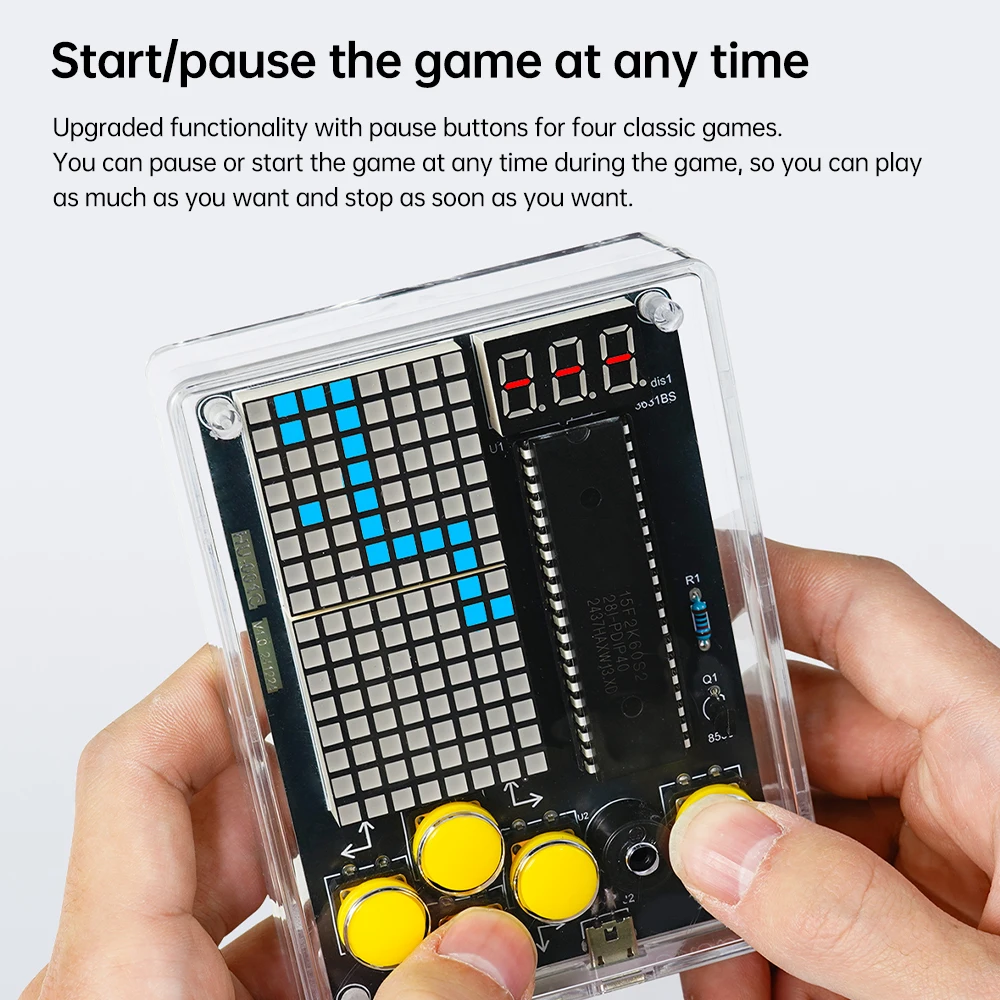

2. Function upgrade and optimization: supports starting or pausing at any time; Three levels of difficulty adjustment, suitable for players of different levels.

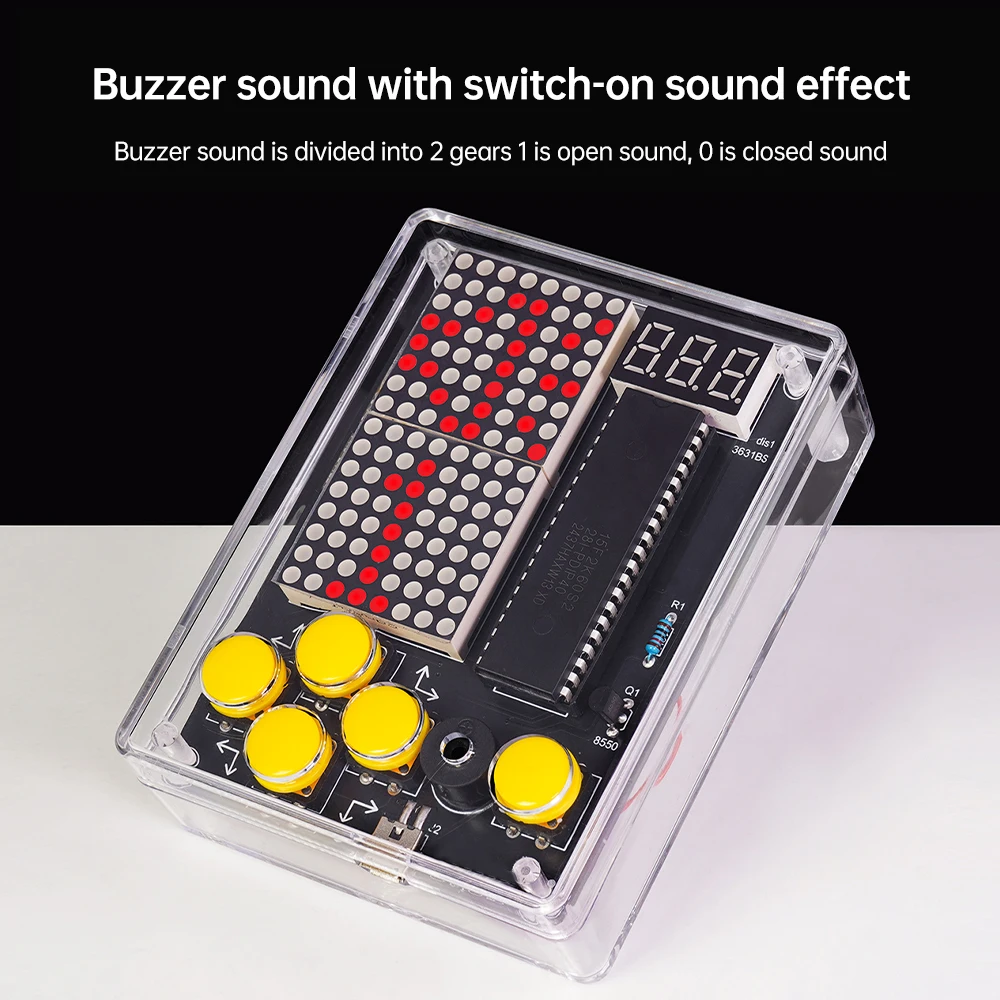

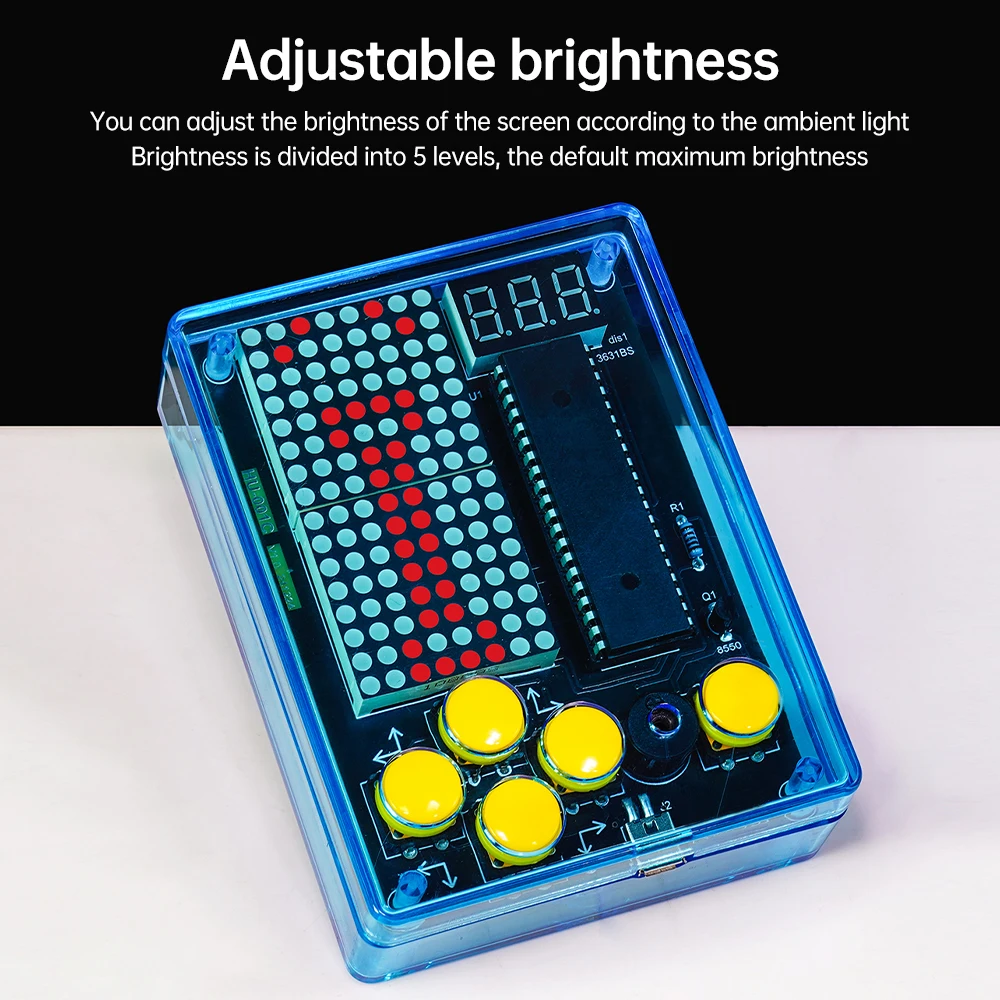

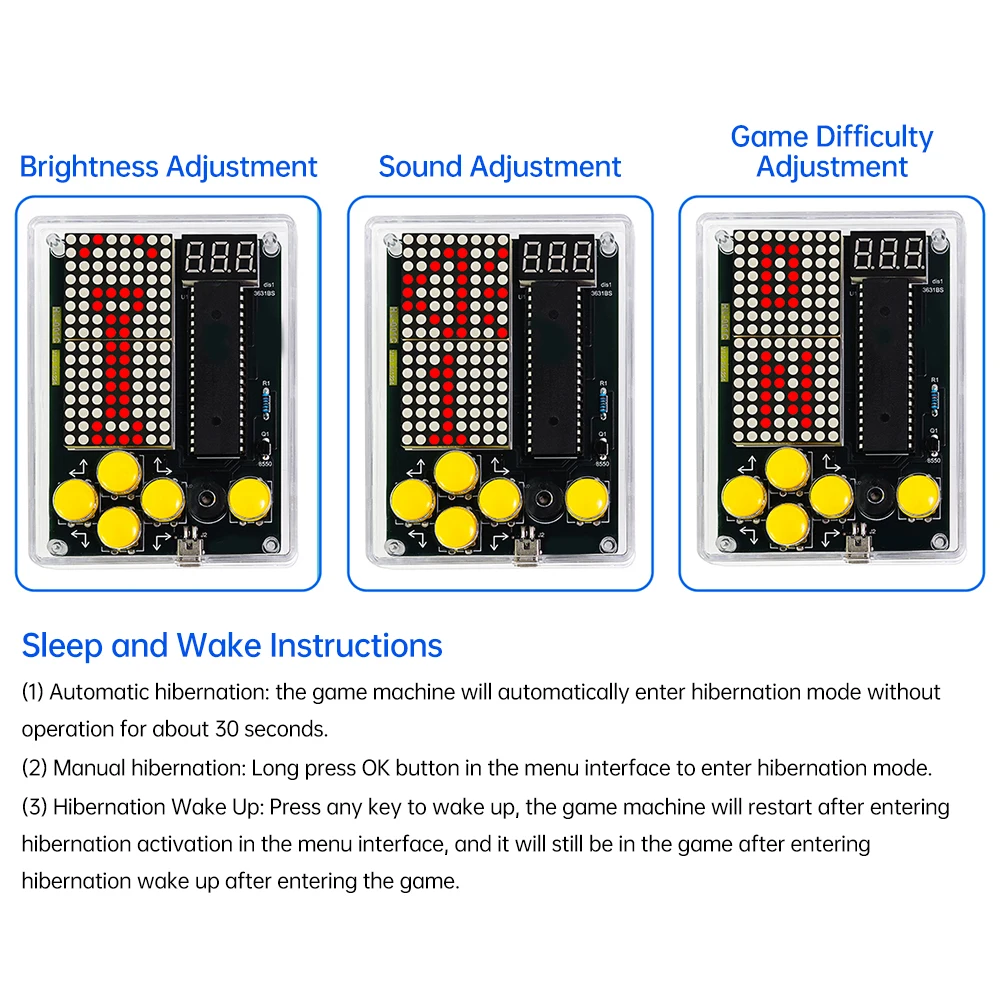

3. Humanized design: The screen brightness can be adjusted to 5 levels to adapt to various environmental lighting conditions; The buzzer sound can be set to two levels, and the sound effect can be turned on or off as desired.

4. Two power supply methods: Supports 4 AAA batteries or USB DC 5V power supply, easy to disassemble and has a 30 second automatic sleep function without operation, energy-saving.

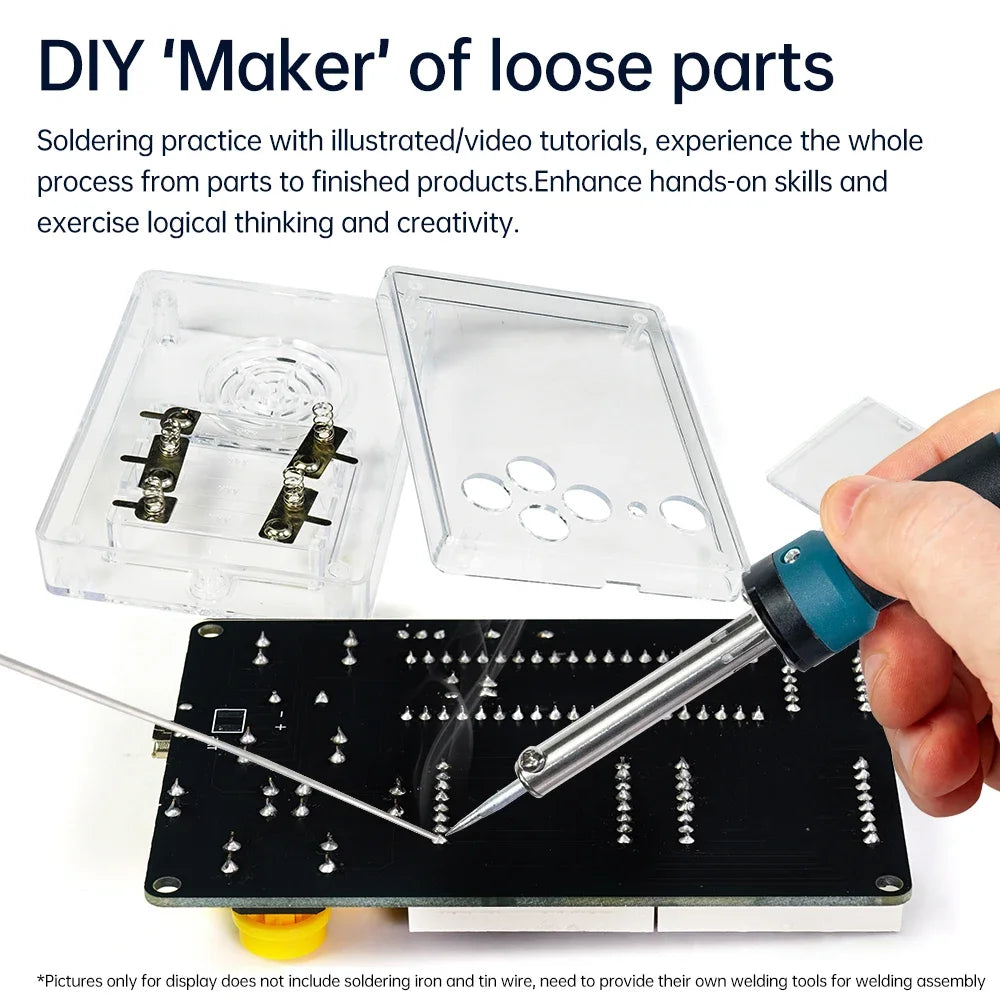

5. DIY welding exercise: loose part design, including 51 microcontroller development board, suitable for electronic enthusiasts to learn welding skills and basic circuit knowledge.

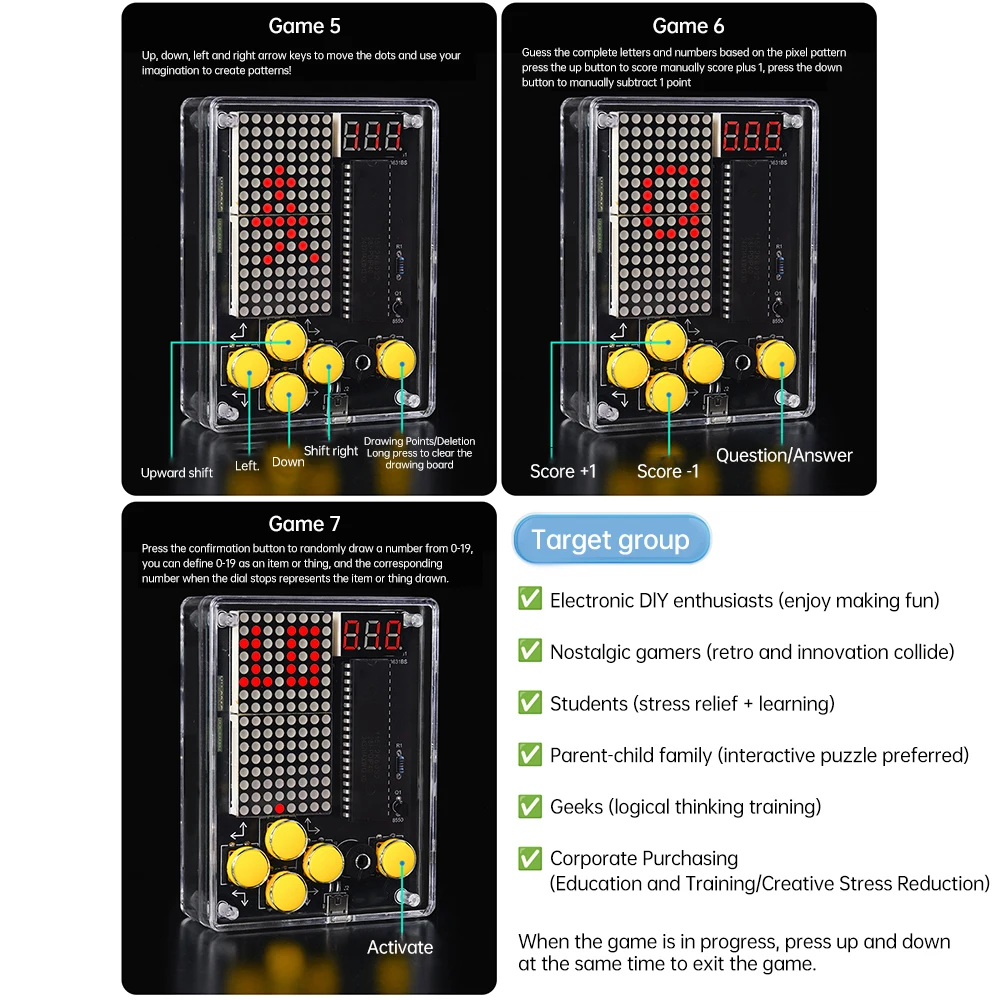

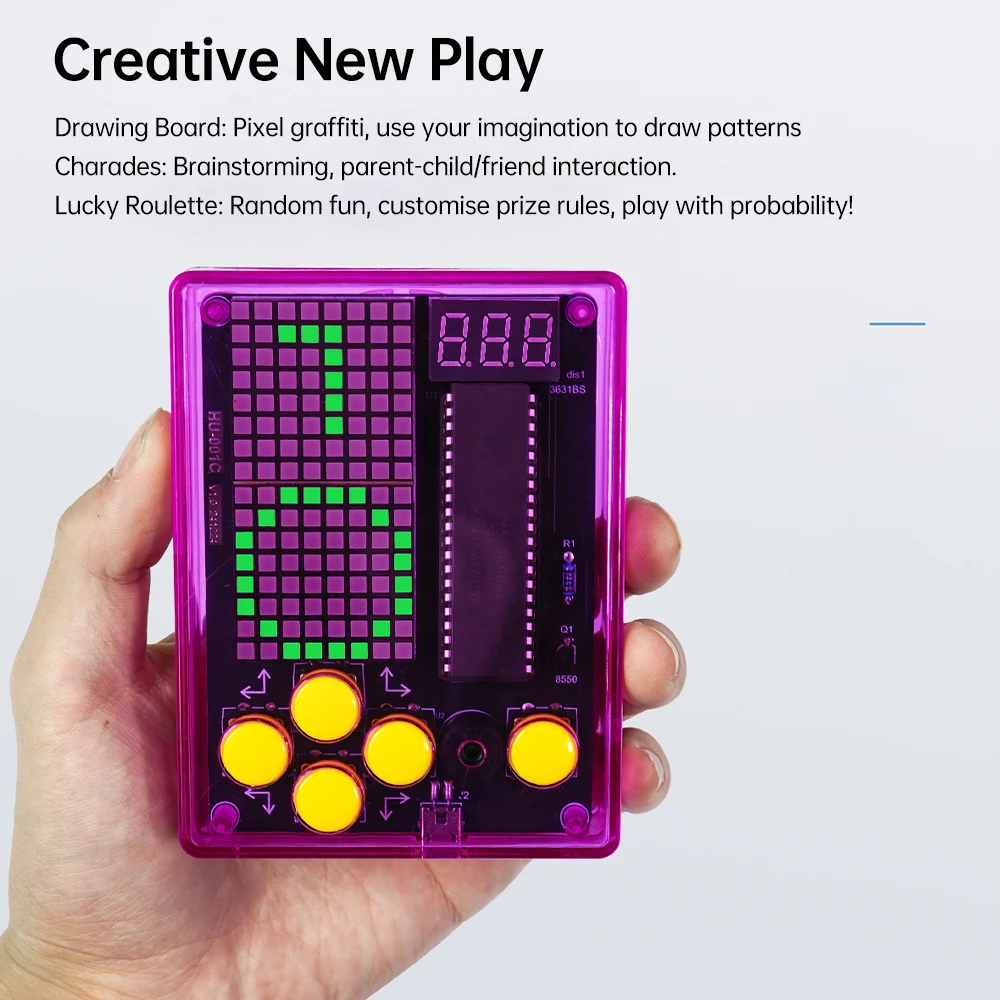

6. Strong interactive fun: The drawing board stimulates creativity, guessing word puzzles promotes parent-child/friend interaction, and the lucky wheel custom rules add random fun, suitable for multi scene entertainment.

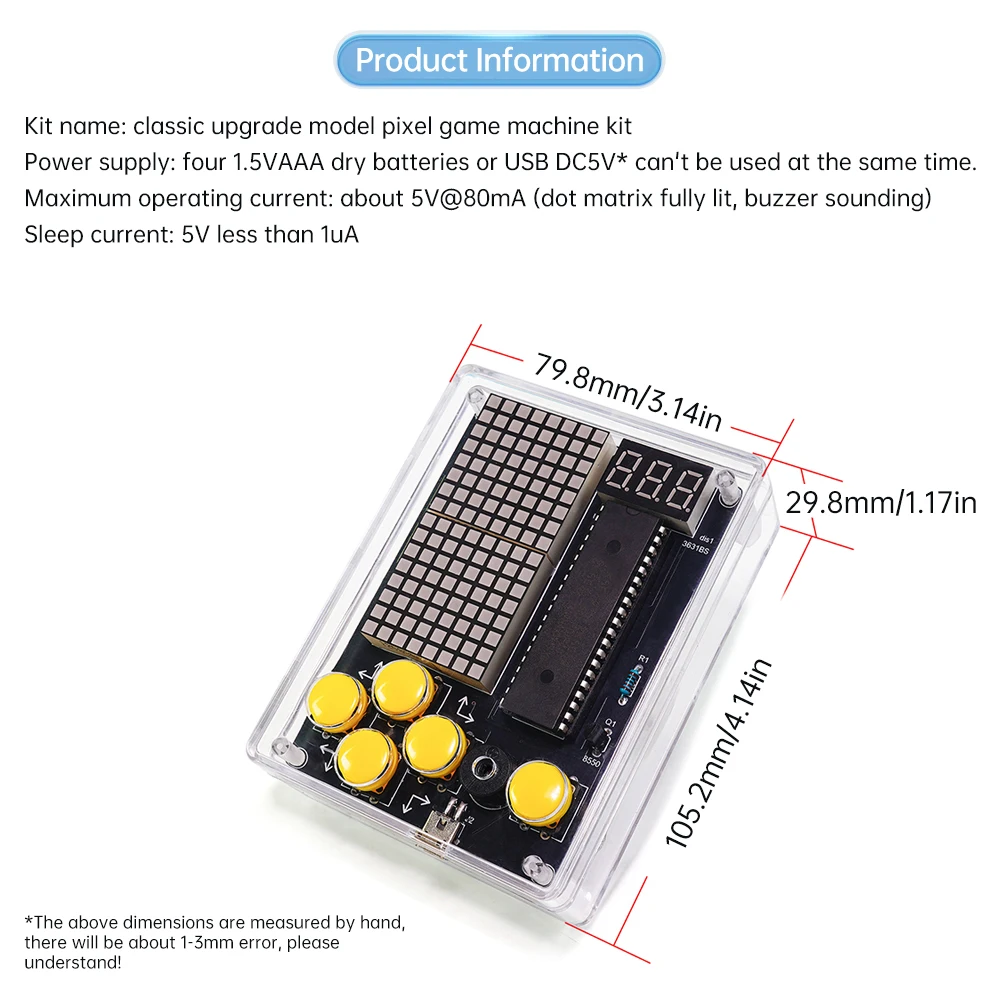

Product Information

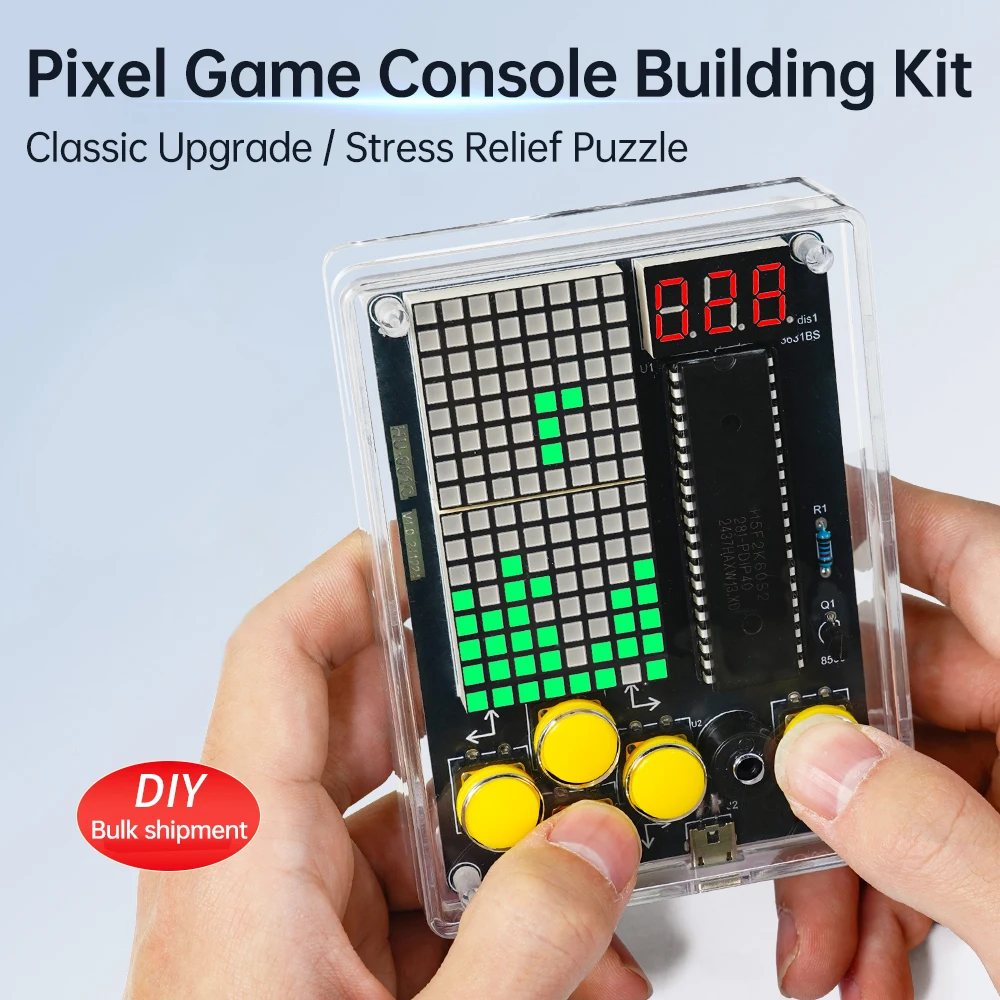

Kit Name: Classic Upgraded Pixel Game Console Kit

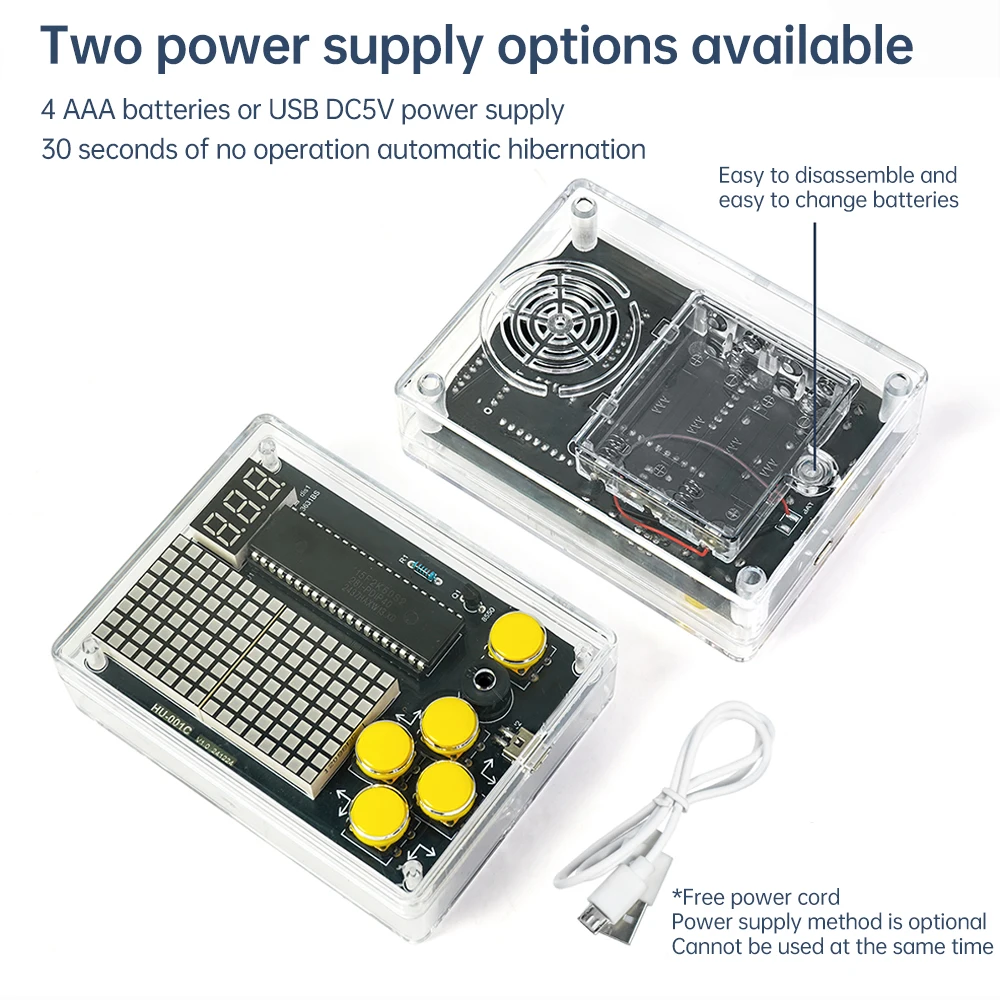

Power supply method: Four 1.5V AAA batteries or USB DC5V [* choose one, cannot be used simultaneously]

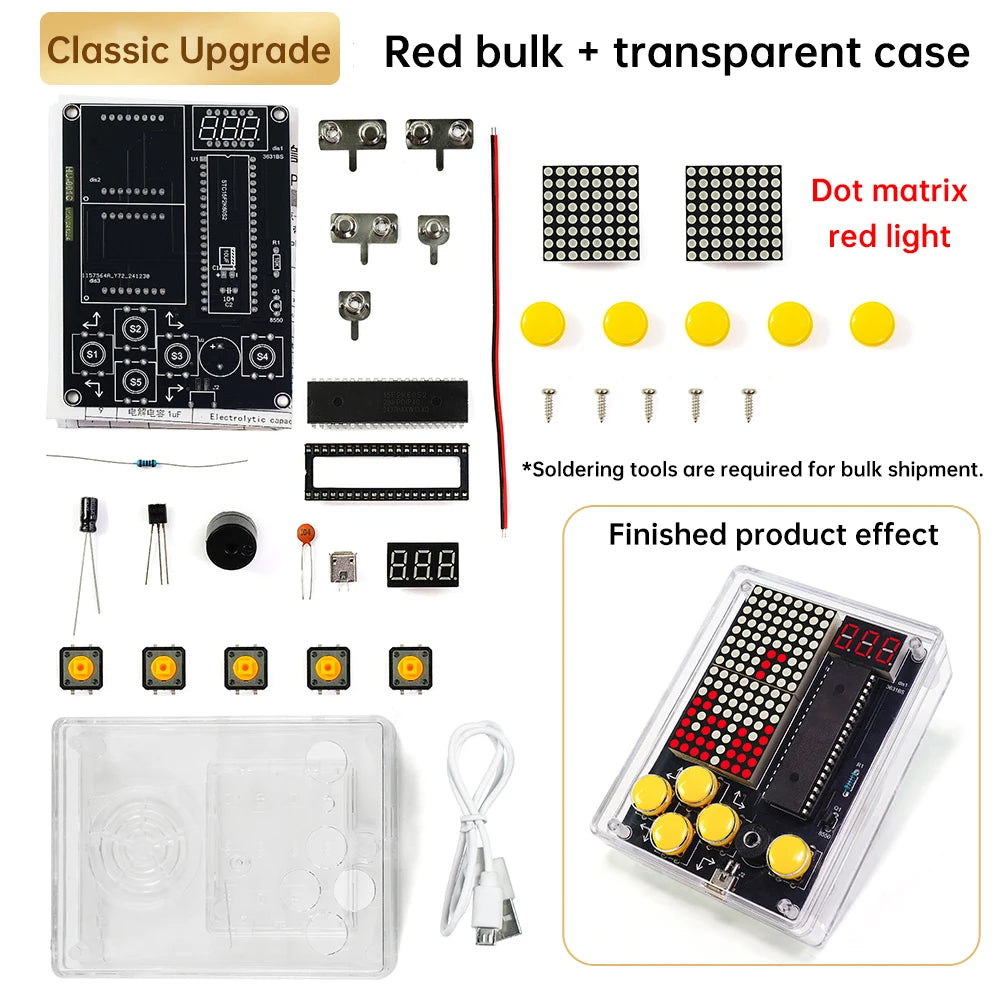

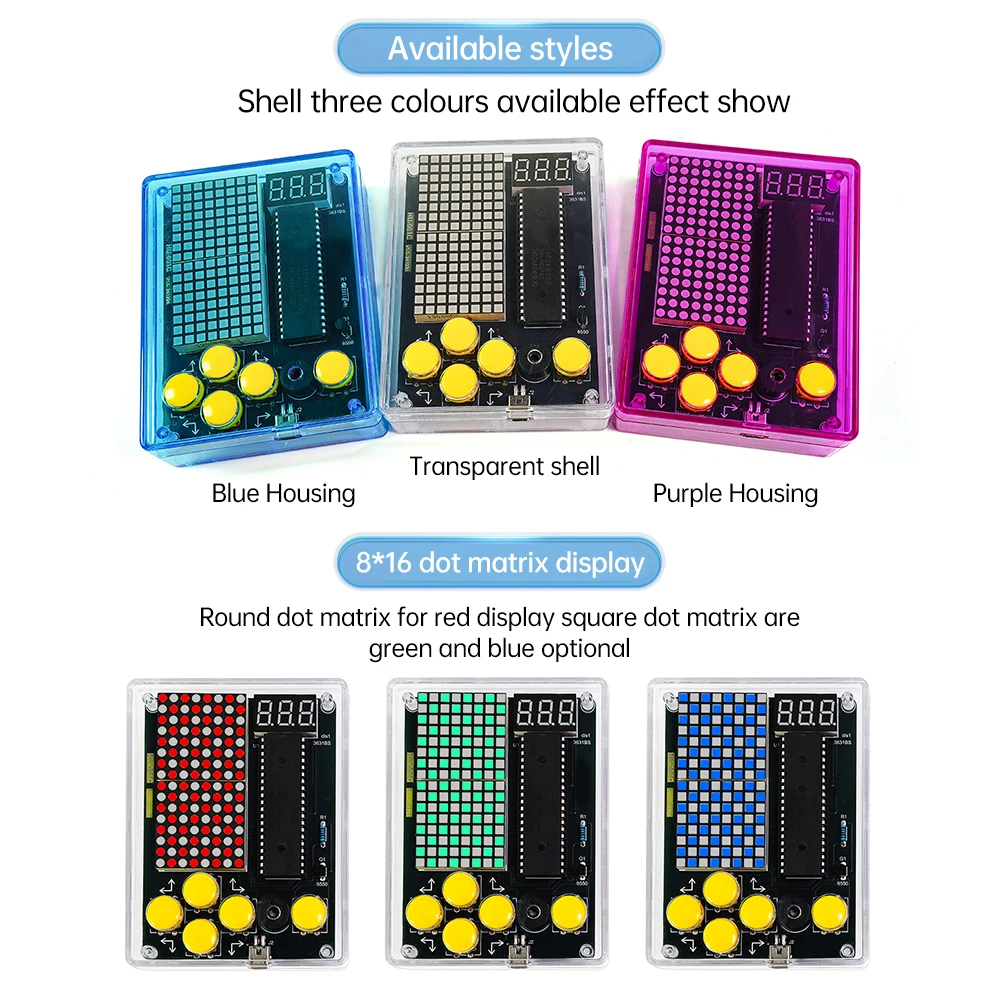

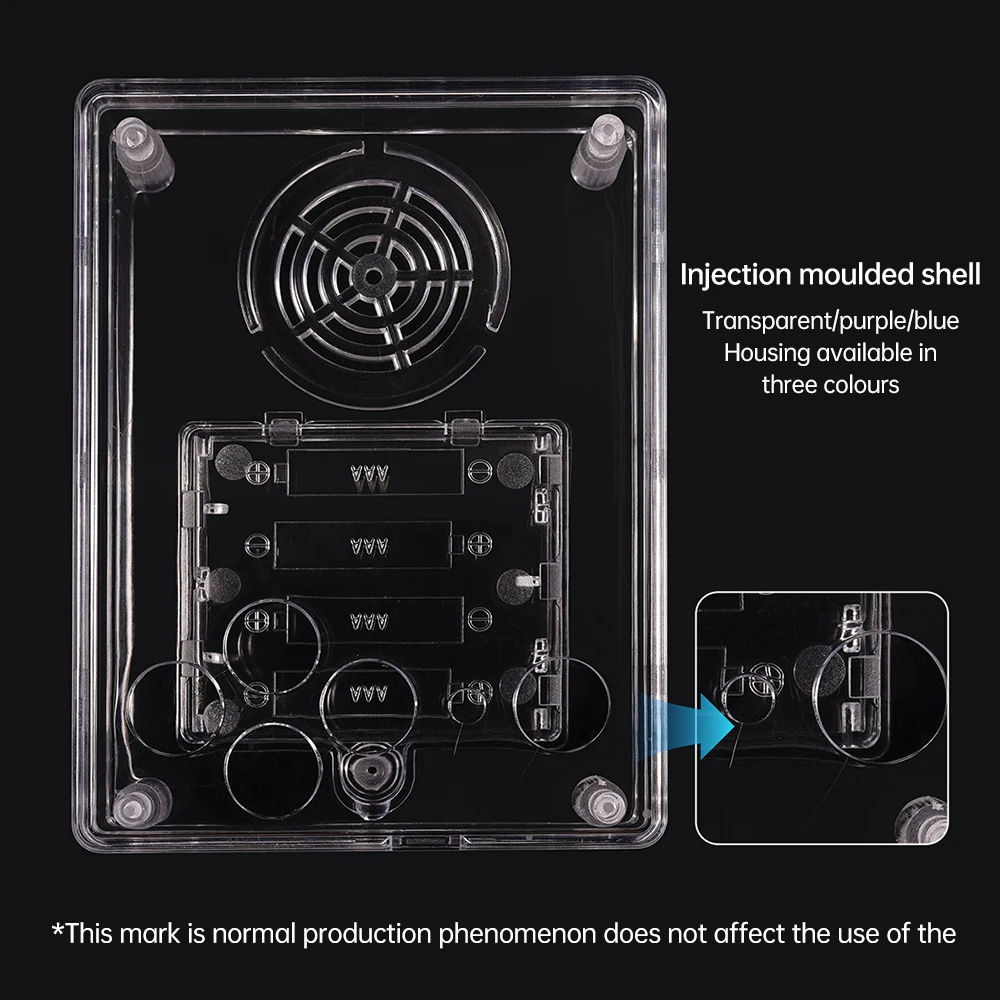

Available shell styles: transparent shell, blue shell, purple shell

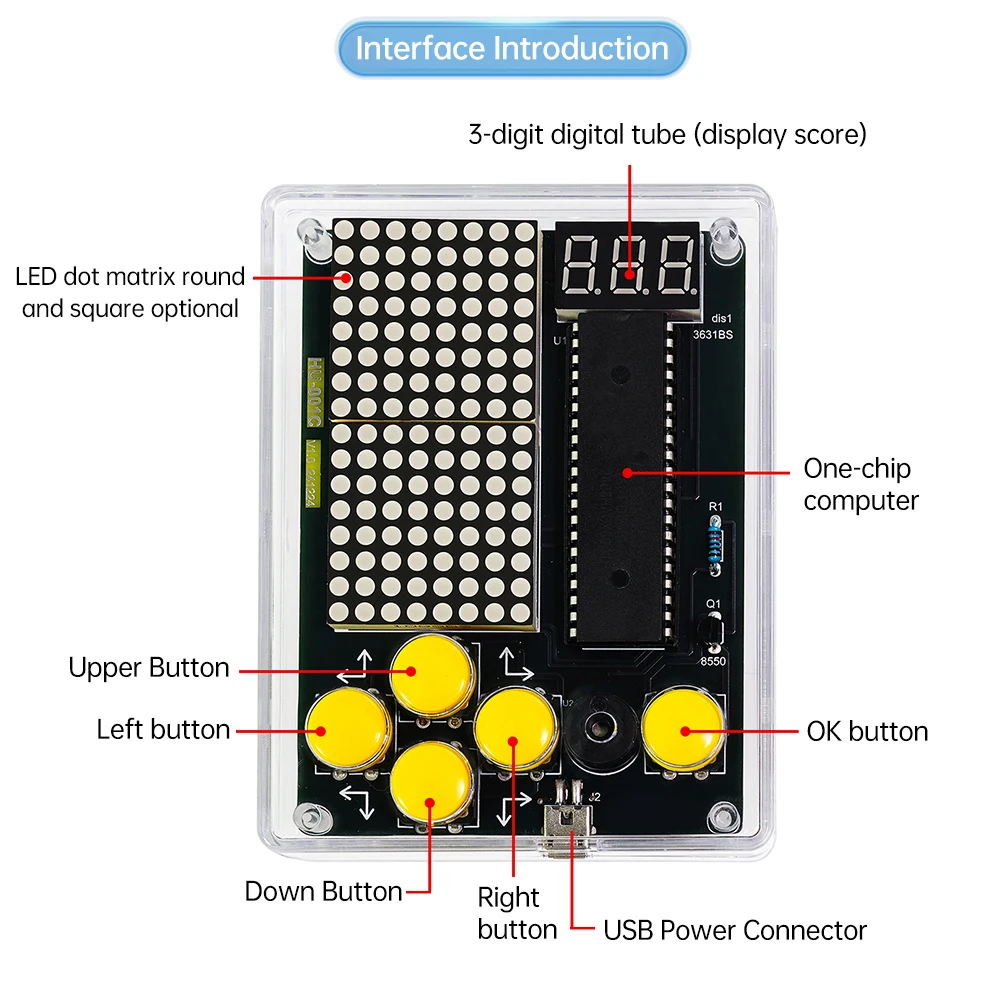

8 * 16 dot matrix display:

Circular dot matrix: red display

Square Dot Matrix: Available in Green and Blue

Maximum operating current: approximately 5V@80mA (Dot matrix fully lit, buzzer beeps)

Sleep current: 5V less than 1uA

PCB size: 70.1x98mm

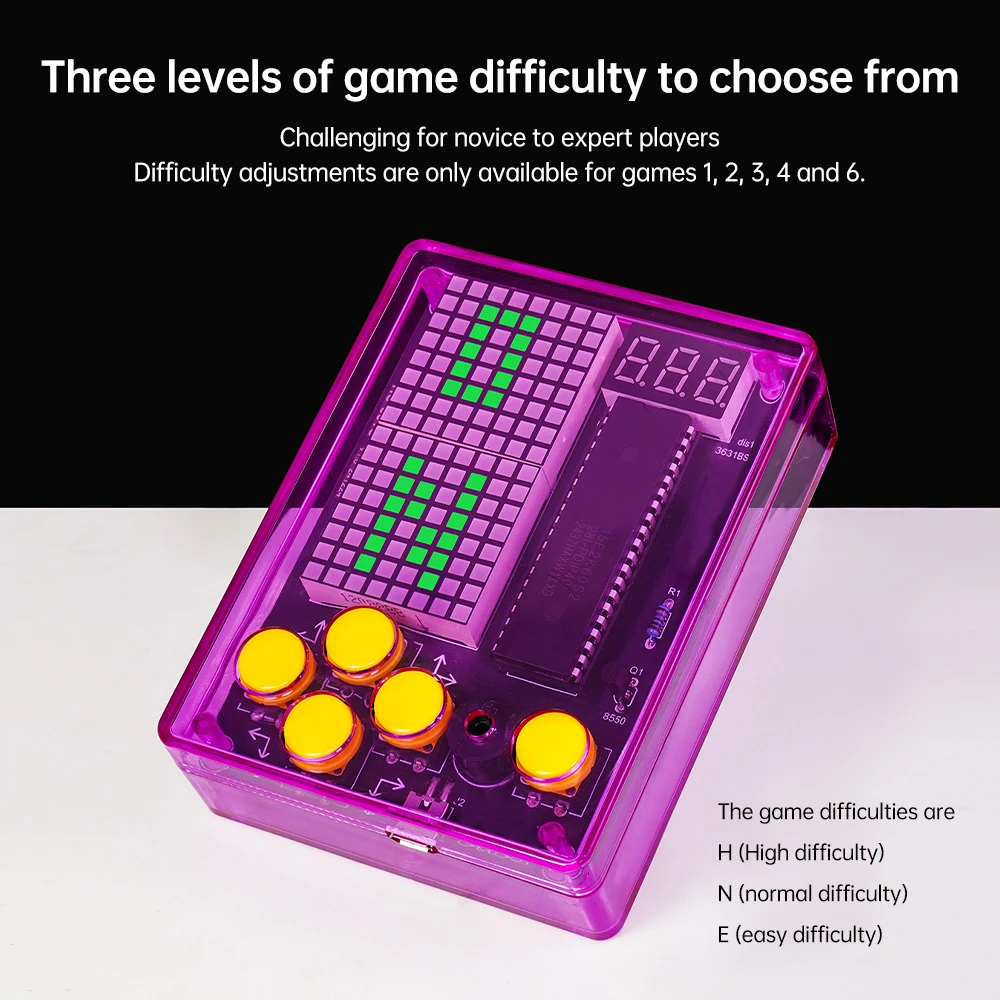

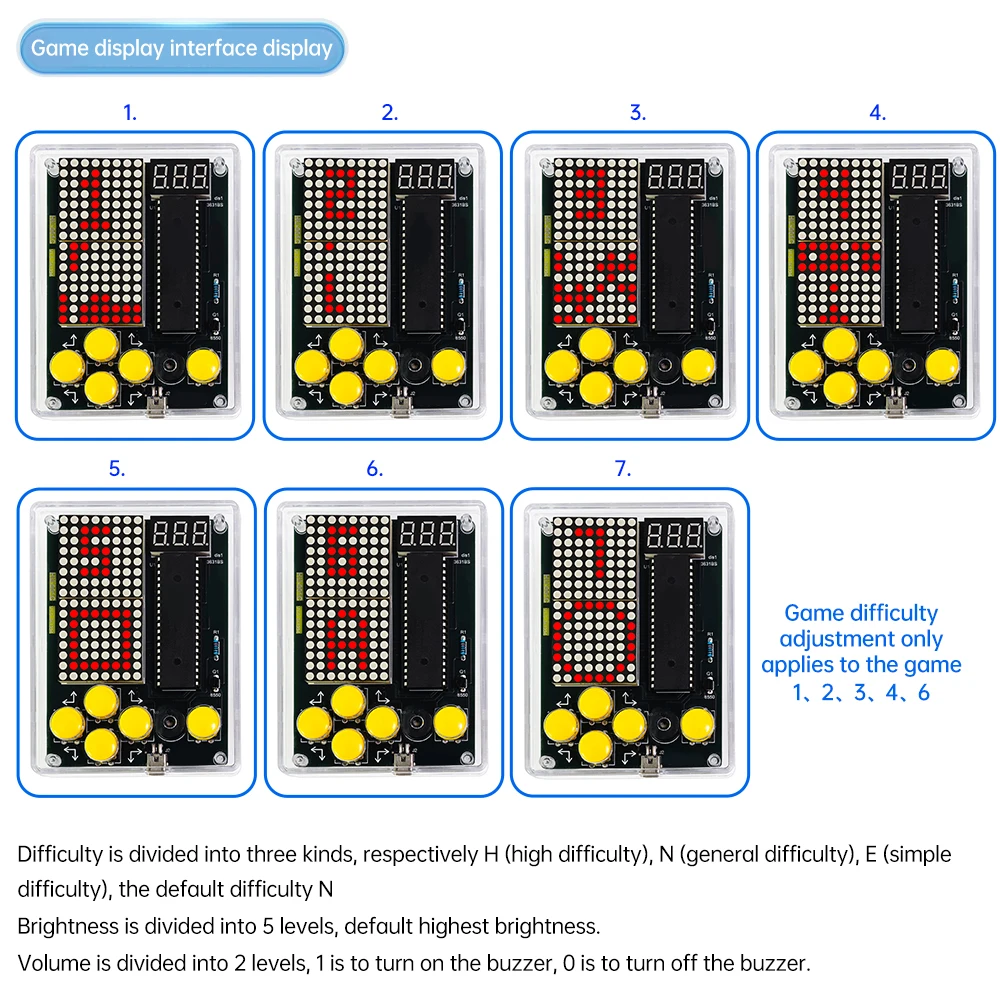

The game difficulty levels are as follows:

H (high difficulty)

N (general difficulty)

E (Simple Difficulty)

Note: When in the game, press the up and down keys simultaneously to exit the game

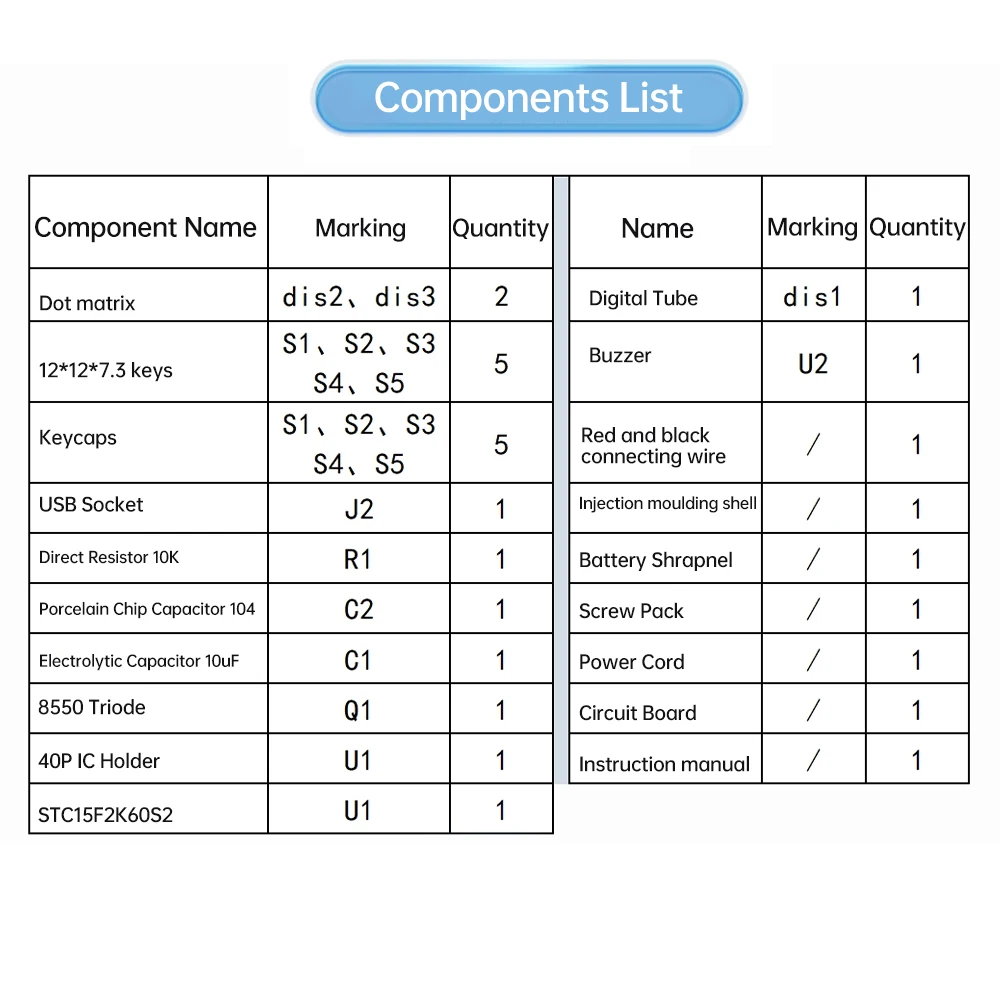

Product list:

1X Game Console DIY Kit

📢Note:

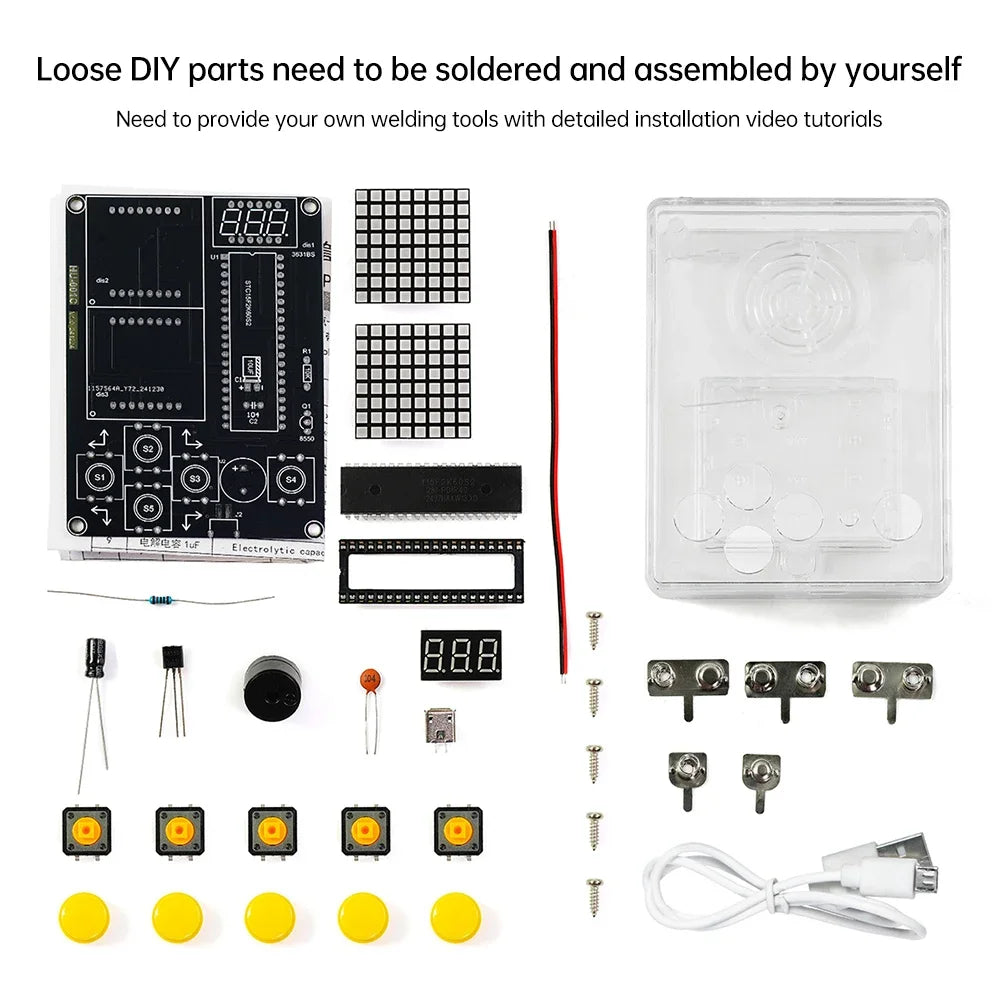

DIY of individual parts requires self welding and assembly, and welding tools with detailed installation video tutorials must be provided.

The above dimensions are measured manually and may have an error of about 1-3mm. Please understand!
